Patent for community design application: Solar power modules
Patent number: 002824847
Patent filing date: October 2015
Inventors: Nebojsa Jakica, Alessandra Zanelli
Applicant: Politecnico di Milano
Meet the new TIFAIN Diamond facade series.

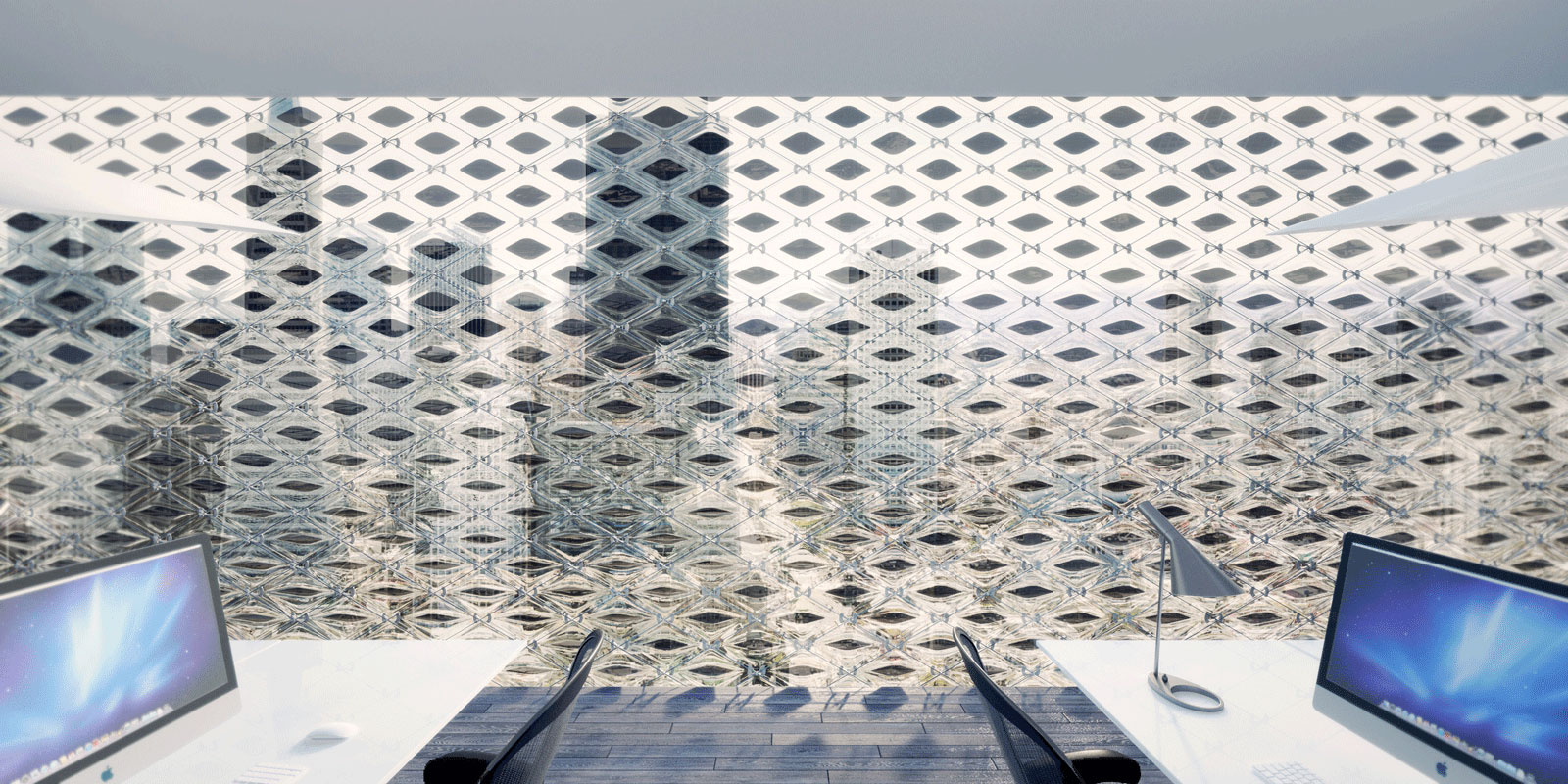

The new TIFAIN Diamond facade series combine active and passive technologies, like daylighting and electricity production from photovoltaics, to create a unique high-performance facade for achieving Nearly Zero, Zero or even Plus Energy Buildings. That means saving and producing energy at the same time. And what’s more, a design is not compromised. The result is more than a facade.
It’s a concept for the future of sustainable buildings.
DESIGN CONCEPT
Universal performance-based design for every sun angle.
The new TIFAIN Diamond facade series combine active and passive technologies, like daylighting and electricity production from photovoltaics, to create a unique high-performance facade for achieving Nearly Zero, Zero or even Plus Energy Buildings. That means saving and producing energy at the same time. And what’s more, a design is not compromised. The result is more than a facade.
It’s a concept for the future of sustainable buildings.
A parametric design framework that supports innovation.
The new TIFAIN Diamond facade tile is created using advanced parametric tools to integrate all innovative ideas into one framework. Flexibility and speed of design process have helped achieving high goals with ease. Moreover, parametric framework presents a great method for establishing design search space and enable any further improvements and optimizations - not only on facade module scale, but on facade and building as a whole.
This sets a new paradigm in a facade and building design.
MATERIALS
Many PV cell types, many layers of innovation.

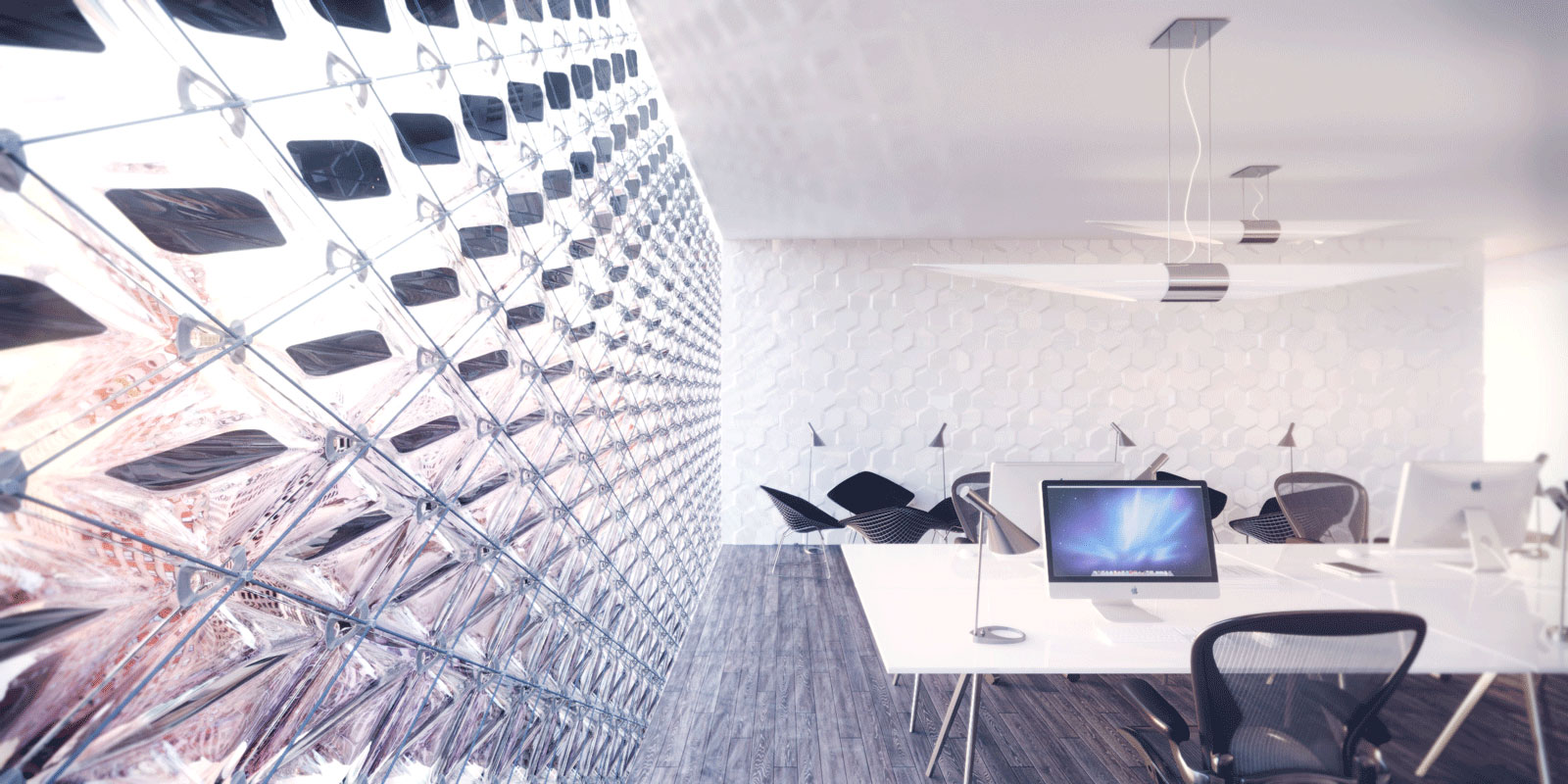

TIFAIN Diamond facade is supported by a cable net structure with custom-designed aluminum holders to ensure minimal weight of the facade and eliminate grid look. Minimal structure also means more transparency, seamless appearance, clear views and brighter indoor spaces.
LUXION® glass or Plastics
Ultimate transparency for the highest achievements.
LUXION® is a brand new material, created at the RCR laboratories in Siena with a special mix of the purest raw materials to ensure the highest quality with the least environmental impact. Because LUXION® glass have a high hydrolytic resistance, similar to a lead crystal, it remains clear over time. It is also humidity resistant and does not mist over, which ensures a great protection for the encapsulated PV cell. Furthermore, thanks to its superior transparency, complete colorlessness and bespoke light transmission (the highest in the industry), LUXION® represents an ideal material for the facade implementation.
Another option for a substrate is durable, UV-resistant and highly-transparent plastics like PMMA and Polycarbonate.
Both options allow more light for indoors and more PV energy production than common glass.
STRUCTURE
Lightweight structural system for a seamless look .
TIFAIN Diamond facade is supported by a cable net structure with custom-designed aluminum holders to ensure minimal weight of the facade and eliminate grid look. Minimal structure also means more transparency, seamless appearance, clear views and brighter indoor spaces.
SIZE AND DIMENSIONS
Link to the official Politecnico di Milano patent page
For all inquires regarding patents please refer to:
licensing.tto@polimi.it
Technology Transfer Office of Politecnico di Milano
